No power required
Operates entirely on clean dry air or gas, so it suits hazardous areas and remote installations without electrical supply.
Displacer and flex tube

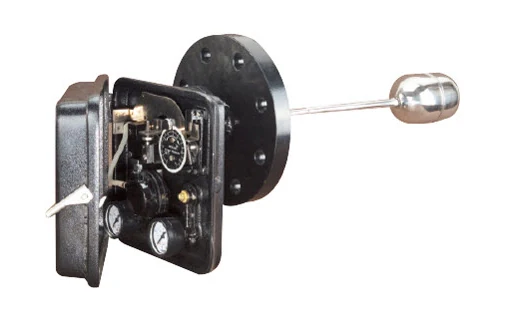

Pneumatic Level Controller
A displacer senses the level and drives a pneumatic signal. There is no electrical supply in the measurement loop, making it a useful choice for pneumatic plants and hazardous areas.
- Max. working pressure
- 60 kg/cm²
- Temperature
- 150 °C
- Supply pressure
- 1.4 / 3 kg/cm²
- Enclosure
- IP 65
Overview
Level control without electricity
A displacer senses the level and drives a pneumatic signal. There is no electrical supply in the measurement loop, making it a useful choice for pneumatic plants and hazardous areas.
The controller consists of a displacer mounted to the flex tube. The pilot valve and carrier assembly are housed in a weatherproof IP65 housing. Exhaust gas is vented inside the enclosure and then to atmosphere through a vent hole.
Known for its simplicity, reliability and ease of maintenance. Reverse action is obtained by rotating the nozzle assembly through 180°.
Direct or reverse action
Reverse action is obtained by rotating the nozzle assembly through 180°, with no parts to change.
Displacer options
Vertical and horizontal displacers in stainless steel, phenolic, acrylic or PP to suit the fluid and the span.
Serviceable in place
Simple mechanism with the pilot valve and carrier assembly housed in a weatherproof enclosure.
Specifications
Standard model; higher output on request
| Connection | 4" NB CS, ASTM A105 flange as standard in 150#, 300#, 600# |
|---|---|
| Enclosure | Die cast aluminium, weatherproof to IP 65 |
| Flex tube material | SS 304 / SS 316 / SS 410 |
| Displacer options | Vertical (S.Steel) 75 mm x 355 mm long (+2 mm) · Vertical (S.Steel) 42 mm x 200 mm long (+2 mm) · Vertical (Phenolic) 90 mm x 115 mm long (+2 mm) · Horizontal (S.Steel) 75 mm x 152 mm long (+2 mm) |
| Differential | 10 to 30 mm depending on size of displacer and S.G. (horizontal float); 20 mm depending on size of displacer and S.G. (vertical float) |
| Inlet and outlet connection | 1/4" NPT |
| Exhaust | Screwed vent connection |
| Max working pressure | 60 Bar / 60 kg/cm² |
| Temperature | 150 °C with stainless steel float, 100 °C with phenolic float, 70 °C with acrylic / PP float |
| Supply pressure | 1.4 kg/cm², 3 kg/cm² |
| Output | 0.2 – 1 kg/cm², 3 kg/cm², higher on request |
| Mode of operation | Pneumatic, on-off direct or reverse |
Tell us the control valve and vessel details
Share the vessel, medium, specific gravity, operating range and control-valve requirement. We will confirm the controller and pneumatic output arrangement.
- Fluid, specific gravity and concentration
- Flow or level range, and line size
- Operating pressure and temperature
- Material of construction and end connection
- Output, display and area classification
