Virtually unbreakable
Machined from imported virgin acrylic in a 25 to 30 mm solid block, rather than assembled around a glass tube.
Single limb · U tube · Inclined

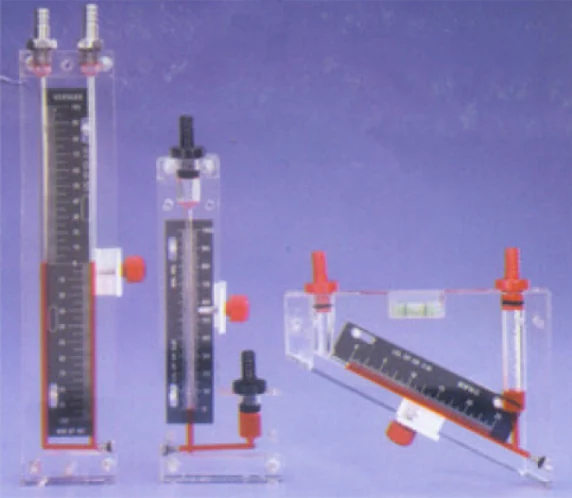

Acrylic Body Manometer
The pressure difference moves a liquid column inside a solid acrylic body. The result is easy to see and avoids the fragile glass construction used in traditional manometers.
- Accuracy
- ± 0.1% of FSD
- Block thickness
- 25 – 30 mm
- Types
- 3
- Standard connection
- 1/4" BSP (F)
Overview
A clear manometer built for everyday plant use
The pressure difference moves a liquid column inside a solid acrylic body. The result is easy to see and avoids the fragile glass construction used in traditional manometers.
Accuracy is ±0.1% of full scale deflection, with a milky white PVC scale carrying black markings. Each instrument is supplied with a zero adjusting knob and level bulb.
Single limb, U tube and inclined types, in five standard ranges each.
High accuracy
±0.1% of full scale deflection, the tightest figure in our manometer range.
Levelled and zeroed
Supplied with a zero adjusting knob and level bulb, so setting up on site is quick.
Mount anywhere
Wall, panel or stand mounting, with fittings to the customer's requirement.
Construction
Standard specification
| Material | Imported and virgin acrylic, 25 to 30 mm thick solid block |
|---|---|
| Durability | The acrylic is virtually unbreakable |
| Fittings | As per customer's requirement. Standard: 1/4" BSP (F) or nozzle type |
| Mounting | Wall / panel / stand mounting |
| Accuracy | +/- 0.1% of FSD |
| Scale | Milky white PVC scale with black markings |
| Arrangement | Zero adjusting knob and level bulb |
Standard scale ranges
By configuration
| Single limb | U tube type | Inclined manometer |
|---|---|---|
| 0 - 100 | 50 - 0 - 50 | 0 - 10 |
| 0 - 200 | 100 - 0 - 100 | 0 - 25 |
| 0 - 300 | 150 - 0 - 150 | 0 - 50 |
| 0 - 400 | 200 - 0 - 200 | 0 - 100 |
| 0 - 500 | 250 - 0 - 250 | 0 - 150 |
Tell us the range
Share the pressure range, medium, mounting position and connection. We will recommend the suitable single-limb, U-tube or inclined model.
- Fluid, specific gravity and concentration
- Flow or level range, and line size
- Operating pressure and temperature
- Material of construction and end connection
- Output, display and area classification
