When space is tight, you still need a proper pressure signal. The compact transmitter keeps the sensing and electronics in a small body for straightforward machine and skid installation.
When space is tight, you still need a proper pressure signal. The compact transmitter keeps the sensing and electronics in a small body for straightforward machine and skid installation.
Their small size, high precision and good environmental adaptability make them widely used in petroleum, chemical, sewage treatment, urban water supply, machinery and metallurgy for measuring the pressure of gases, liquids and steam.

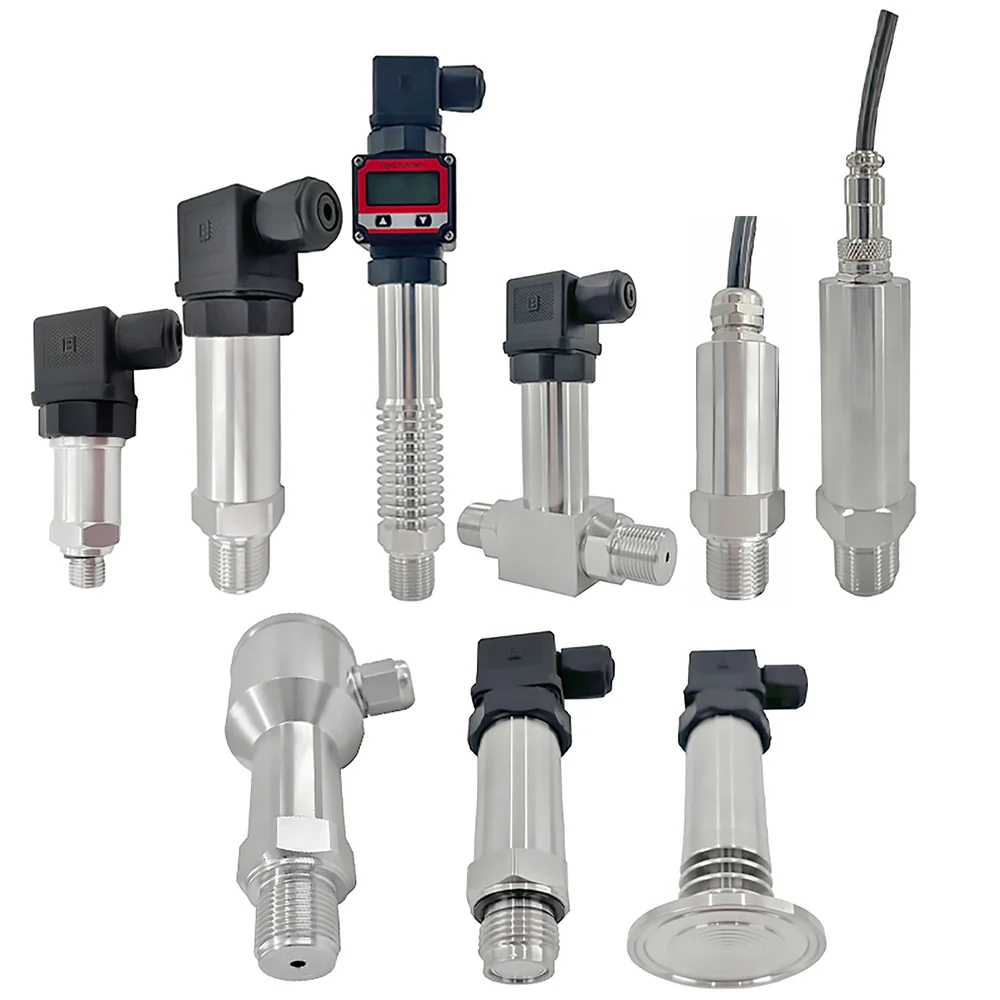

Every model shares the same sensing core and general performance parameters. Select the group that matches your installation.
Stable, repeatable output backed by an intelligent digital circuit.
Vacuum to 250 MPa across the series, with no moving parts to wear.
Readings are not affected by the mass of the measured medium.
Stainless steel shell rated IP65 for wet and dusty plant areas.
Applies to all variants unless otherwise specified
| Power supply | 12~36 VDC / 5 VDC |
|---|---|
| Ambient / medium temperature | −10 °C ~ 80 °C |
| Relative humidity | 0 ~ 90 % |
| Overload | 150 % |
| Pressure form | Gauge, absolute and negative pressure |
| Accuracy class | 0.1 %, 0.25 %, 0.5 % |
| Long-term stability | ±0.2 % per year |
| Standard output | 4~20 mA, 0~10 VDC, 0~5 VDC, 0.5~4.5 VDC, RS485 |
| Standard thread | M20×1.5, G1/2 (customisable) |
| Enclosure | Stainless steel, protection class IP65 |
High-temperature accessories are required if the medium exceeds 70 °C. Pressure form, output signal and process thread can be specified at the time of order.
Select the group that matches your installation: the electrical connection, whether you need a local display, the process environment, or the type of sensing diaphragm.

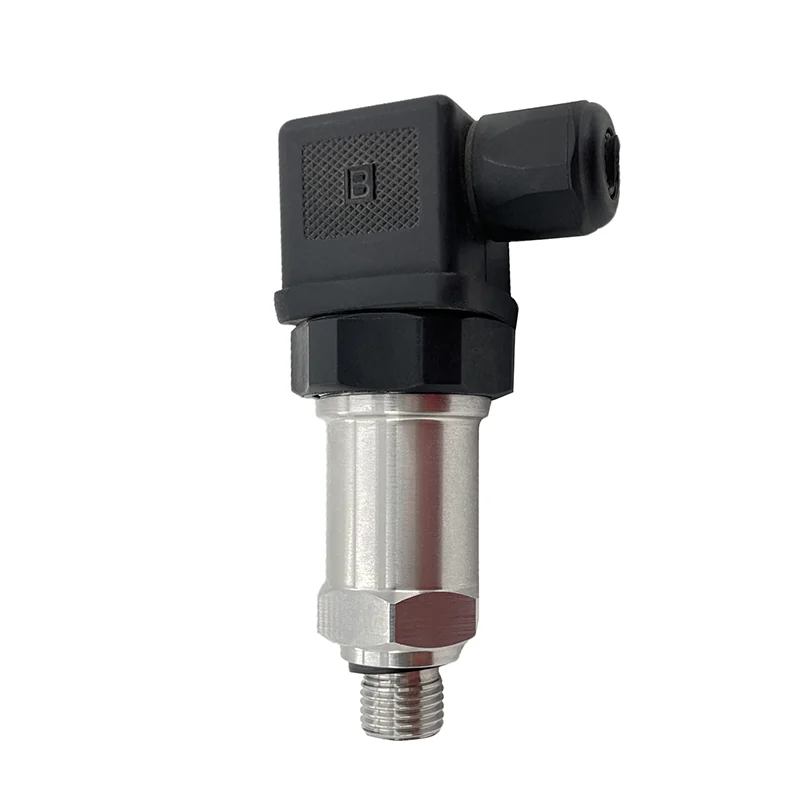

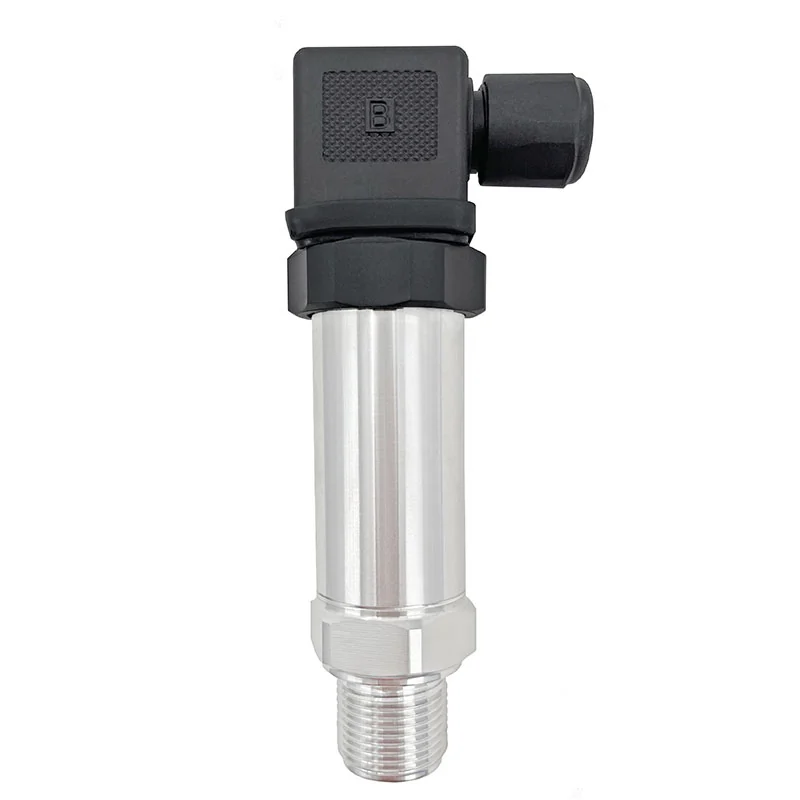

Standard DIN (Hersman) plug connection. Part of the standard electrical connection group, which shares a measuring range of −100 kPa ~ 0 ~ 100 MPa.
Secure, multi-pin aviation connector for installations subject to vibration.
Cable gland outlet for waterproof integrity in wash-down and outdoor areas.

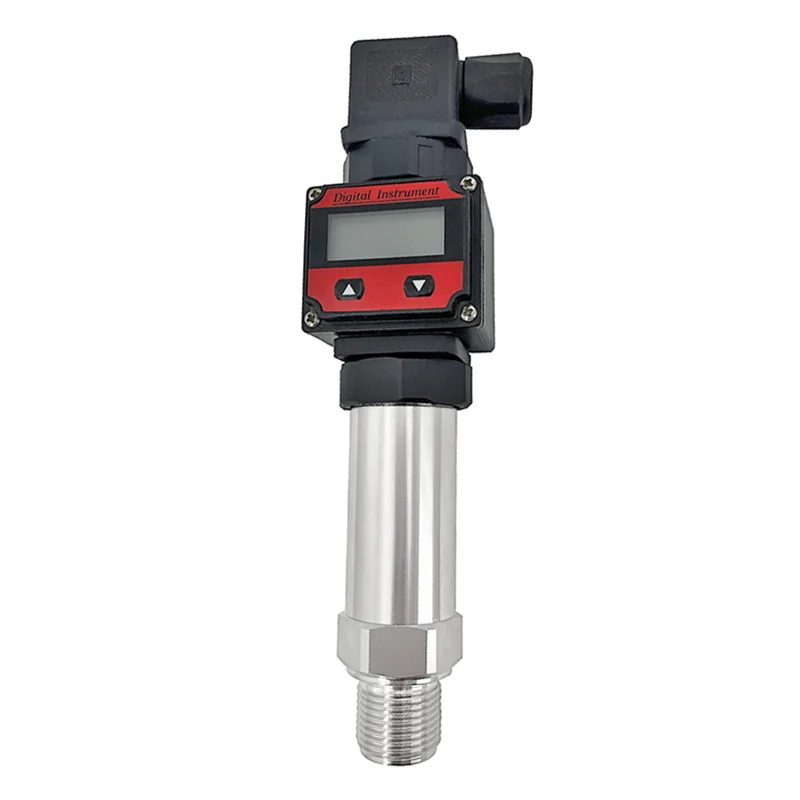

Standard temperature with integrated display for local readout at the measuring point. Output 4~20 mA standard; RS485 optional on HDD.

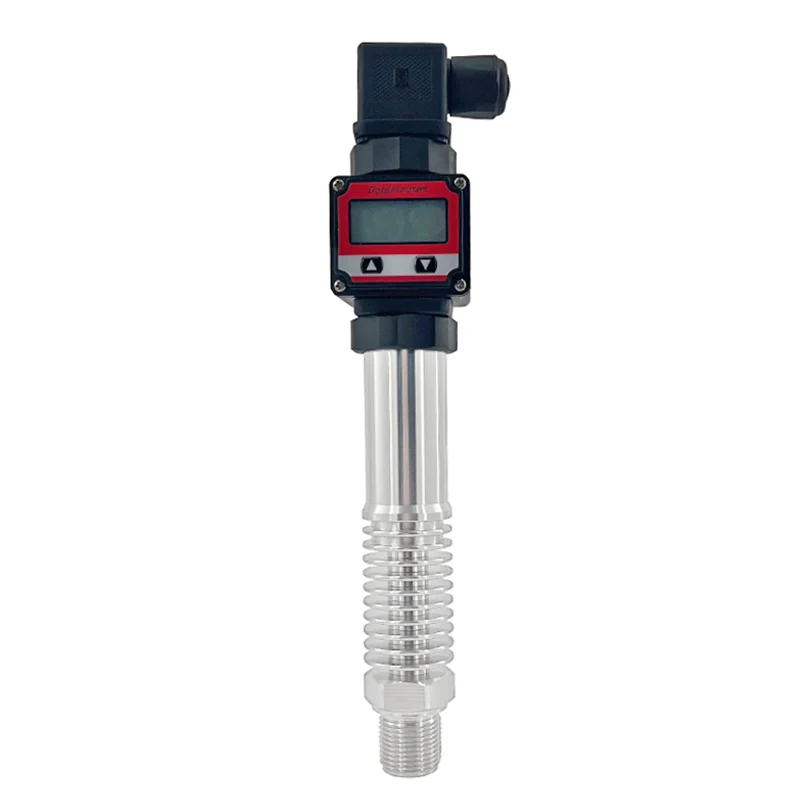

Integrated display that handles high process temperatures.
High temperature tolerance with waterproof outlet.

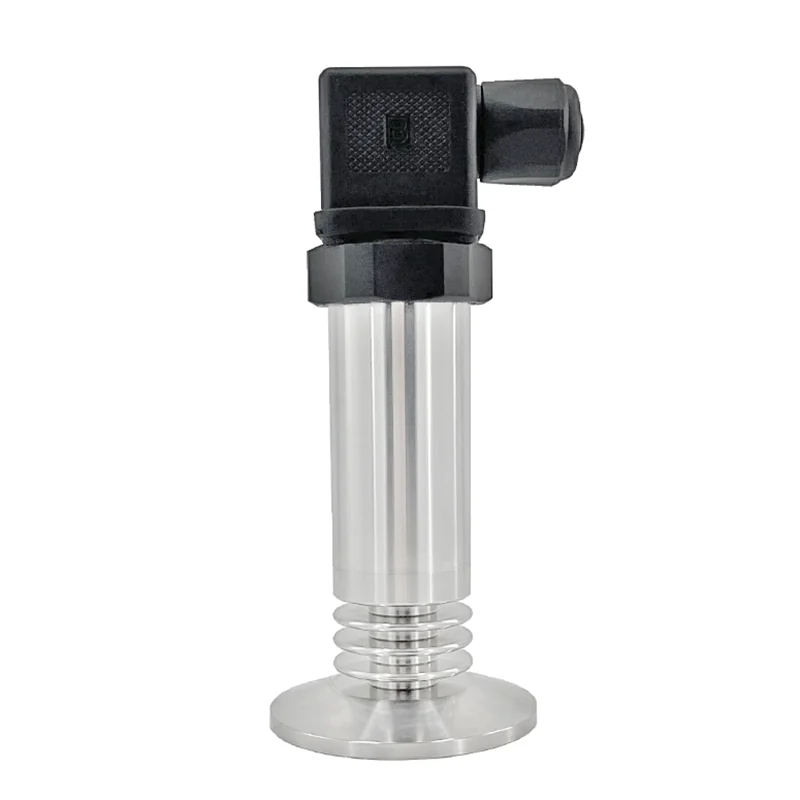

Tri-clover connection, Φ50.5 mm standard, for food and pharma service.

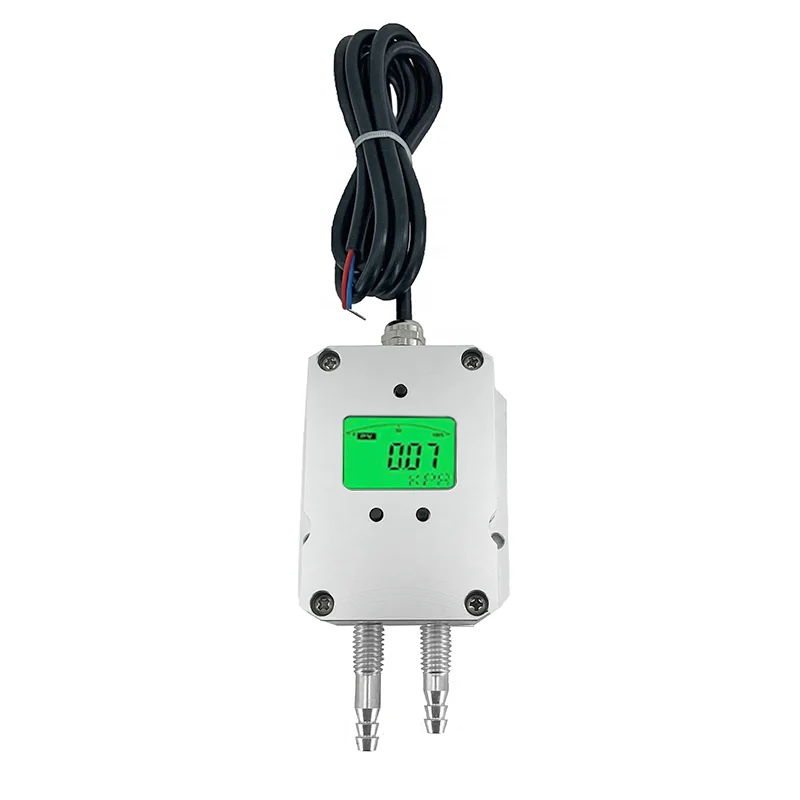

Low pressure and wind measurement. Thread: 48.

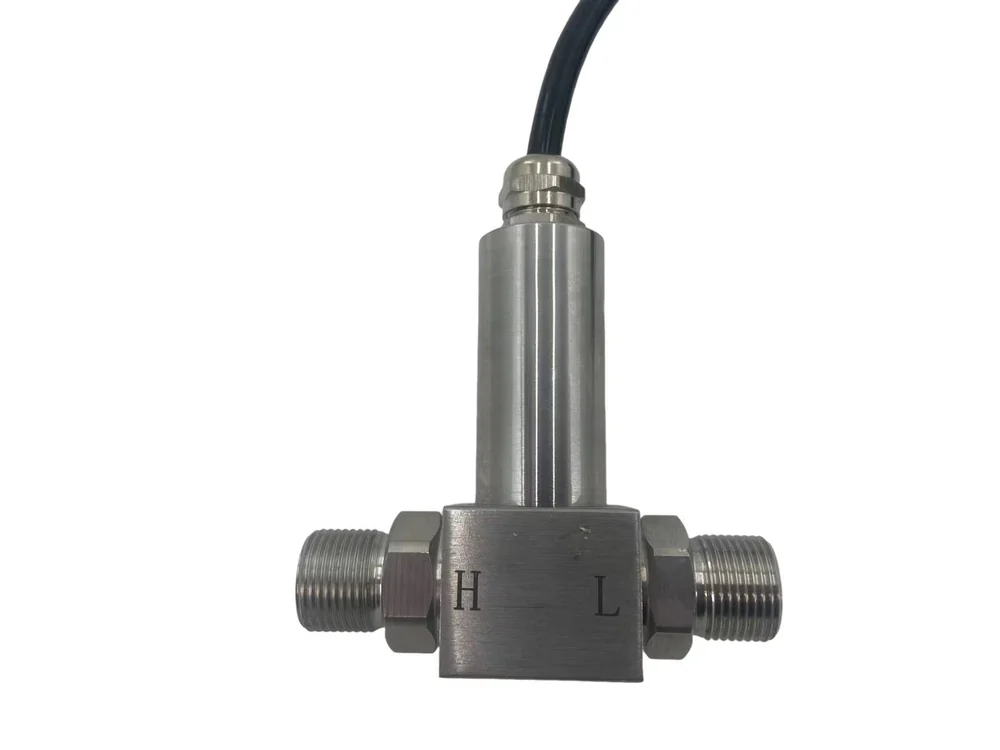

Measures pressure drop across two points.

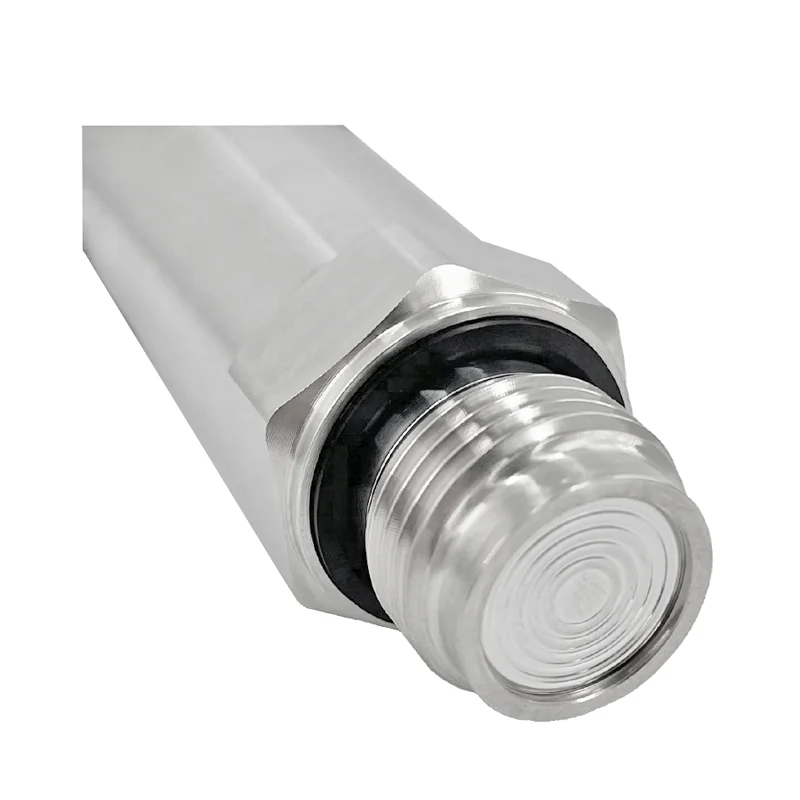

Flat exposed diaphragm prevents clogging on viscous and crystallizing mediums. Strain gauge (VI-CPT-SG, 0 ~ 250 MPa) and strain gauge flush film (VI-CPT-SGFF, 0 ~ 10 MPa ~ 100 MPa) variants are also available.
Bare sensing element for integration into your own instrument. 1.5 m ADC power supply, ≥70 mVDC output.
Share the range, medium, temperature, thread or connection and output. We will confirm the compact model and sensor range.
