Protected column
Aluminium casing on three sides with a transparent acrylic front, over a powder coated body.
IGM-UT19 · IGM-SL19

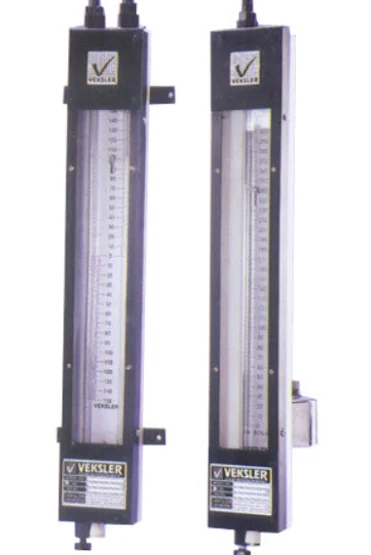

Industrial Grade Manometer
A liquid column turns pressure difference into a height you can see. It is a very direct measurement: the higher the difference, the greater the column movement.
- Accuracy
- better than ± 0.5% FSD
- U tube ranges
- 6 models
- Single limb ranges
- 7 models
- Widest range
- 1500 – 0 – 1500
Overview
Differential pressure you can see
A liquid column turns pressure difference into a height you can see. It is a very direct measurement: the higher the difference, the greater the column movement.
The scale is aluminium anodised or PVC engraved, with PVC, PP or SS304 wetted parts. End connections may be 1/4" BSP, 1/2" BSP or nozzle type, and mounting is wall, panel or stand type.
All manometers are supplied with a zero adjusting screw and drain plug. Instrument accuracy is better than +/- 0.5% of F.S.D.
Uniform bore tube
Thick walled borosilicate glass metering tube, for a linear and repeatable column.
Wetted parts to suit
PVC, PP or SS304 wetted parts, with the end connection specified to the installation.
Mount anywhere
Wall, panel or stand mounting, supplied with zero adjusting screw and drain plug.
Specification
Construction and materials
| Casing | Aluminium on three sides with transparent acrylic front |
|---|---|
| Metering tube | Uniform bore, thick walled borosilicate glass |
| Body | Powder coated |
| Scale | Aluminium anodised / PVC engraved |
| Wetted parts | PVC / PP / SS304 |
| End connections | 1/4" BSP, 1/2" BSP or nozzle type |
| Mounting | Wall / panel / stand type |
| Supplied with | Zero adjusting screw, drain plug |
| Accuracy | Better than +/- 0.5% of F.S.D. |
Standard scale ranges
U tube and single limb models
| Model | Type | Scale range |
|---|---|---|
| IGM-UT19-1 | U tube | 1500 – 0 – 1500 |
| IGM-UT19-2 | U tube | 1000 – 0 – 1000 |
| IGM-UT19-3 | U tube | 750 - 0 - 750 |
| IGM-UT19-4 | U tube | 500 - 0 - 500 |
| IGM-UT19-5 | U tube | 250 - 0 - 250 |
| IGM-UT19-6 | U tube | 100 - 0 - 100 |
| IGM-SL19-1 | Single limb | 0 - 2000 |
| IGM-SL19-2 | Single limb | 0 - 1500 |
| IGM-SL19-3 | Single limb | 0 - 1000 |
| IGM-SL19-4 | Single limb | 0 – 760 |
| IGM-SL19-5 | Single limb | 0 - 500 |
| IGM-SL19-6 | Single limb | 0 - 250 |
| IGM-SL19-7 | Single limb | 0 - 200 |
Pick a range, or send us the duty
Share the pressure range, fluid, temperature and connection. We will confirm the manometer type and scale.
- Fluid, specific gravity and concentration
- Flow or level range, and line size
- Operating pressure and temperature
- Material of construction and end connection
- Output, display and area classification
