01
Standard Thread
VI-PT-ThreadM20×1.5 or G1/2 process connection with standard electronics. The default industrial build.
High precision, good stability
Stable, repeatable measurements with intelligent digital compensation.
VI-PT Series
Pressure Transmitter
A pressure sensor converts process pressure into an electrical signal for a PLC, DCS or display. Different process connections and sensor arrangements let the same basic transmitter fit many jobs.
- Range
- vacuum to 100 MPa
- Accuracy class
- 0.1 %
- Long-term stability
- ± 0.2 % / year
- Enclosure
- IP65
Overview
Pressure as a signal, not just a dial reading
A pressure sensor converts process pressure into an electrical signal for a PLC, DCS or display. Different process connections and sensor arrangements let the same basic transmitter fit many jobs.
Their high precision, wide range coverage and good environmental adaptability make them suitable for measuring gas, liquid and steam pressure in industrial applications including petroleum, chemical, power generation, water treatment, food processing and metallurgy.
Select on process connection method, electrical interface and application environment; the sensing core is common to all.
Wide range coverage
Supports gauge, absolute and negative pressure from industrial vacuum to 100 MPa.
No moving parts
Long service life with high reliability and no mechanical wear.
Robust construction
Stainless steel shell rated IP65, unaffected by medium mass or composition.
General performance parameters
Applies to all variants unless otherwise specified
| Power supply | 12 ~ 36 VDC |
|---|---|
| Ambient temperature | −30 °C ~ 80 °C |
| Medium temperature | −10 °C ~ 80 °C |
| Relative humidity | 0 ~ 90 % |
| Overload | 150 % |
| Pressure form | Gauge, absolute, and negative pressure |
| Accuracy class | 0.1 %, 0.25 %, 0.5 % |
| Long-term stability | ±0.2 % per year |
| Standard output | 4~20 mA, 0~10 VDC, 0~5 VDC, RS485, HART (model dependent) |
| Enclosure | Stainless steel, protection class IP65 |
High-temperature accessories are required if the medium exceeds 70 °C. Pressure form, output signal and process thread can be specified at order time.
Models and variants
Seven configurations.
VI-PT transmitters are available in standard industrial and specialised configurations. Select based on your process connection method, electrical interface and application environment.
02

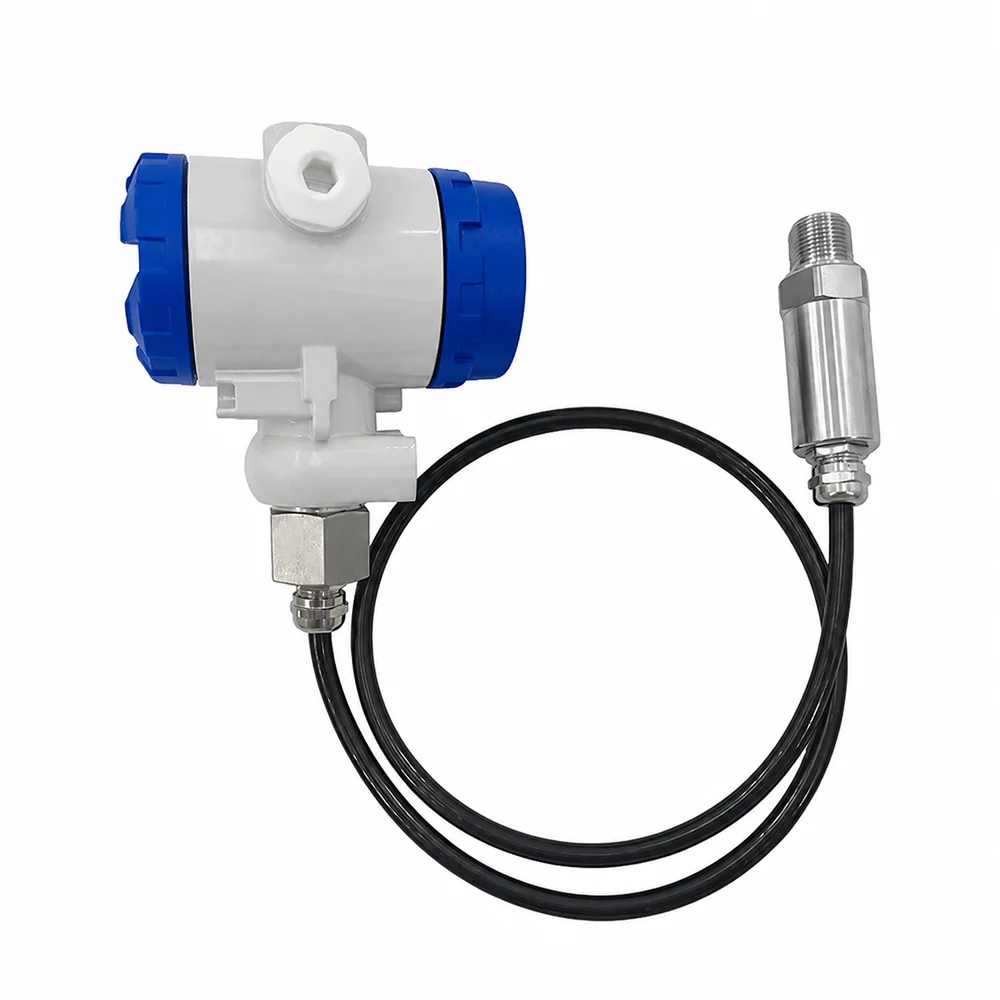

Flying Lead
VI-PT-FLDirect flying lead electrical connection for flush mounting, where there is no room for a conduit entry.
03

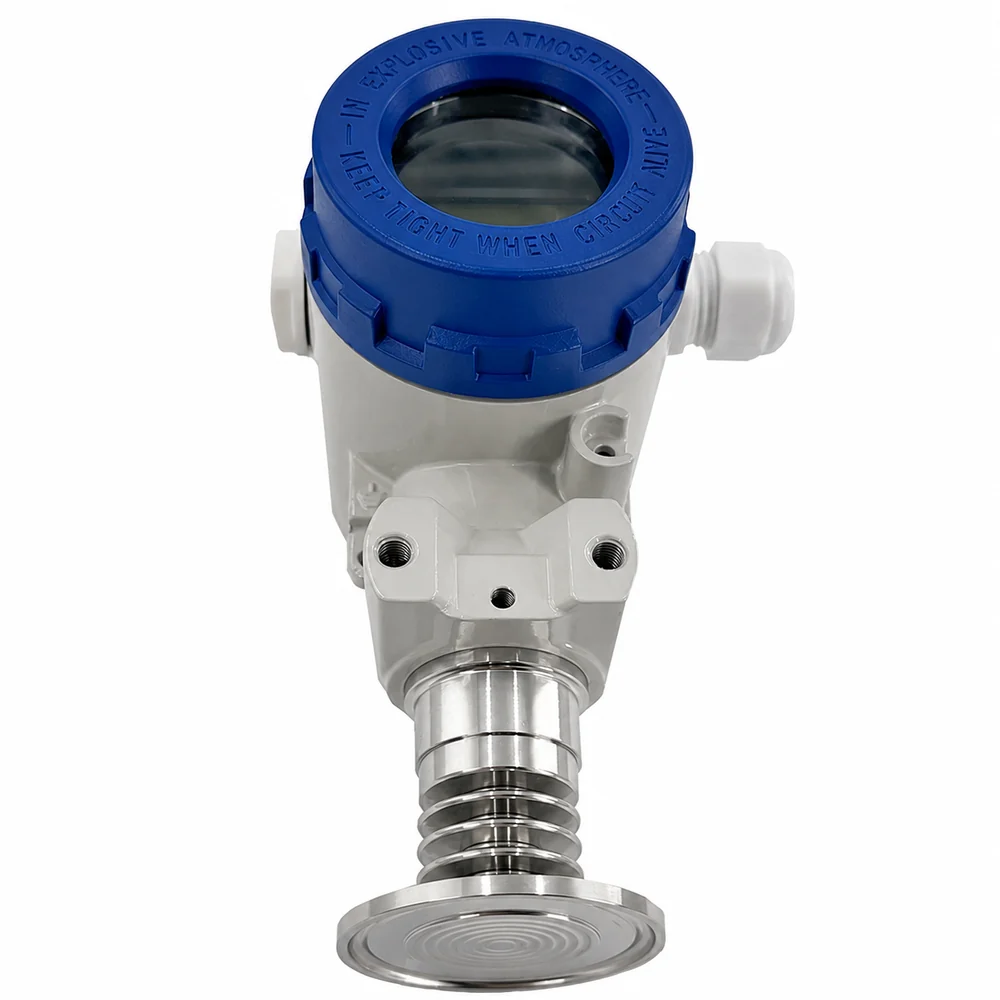

Tri Clover (Sanitary)
VI-PTΦ50.5 mm hygienic flange for food, beverage and pharmaceutical service.
04

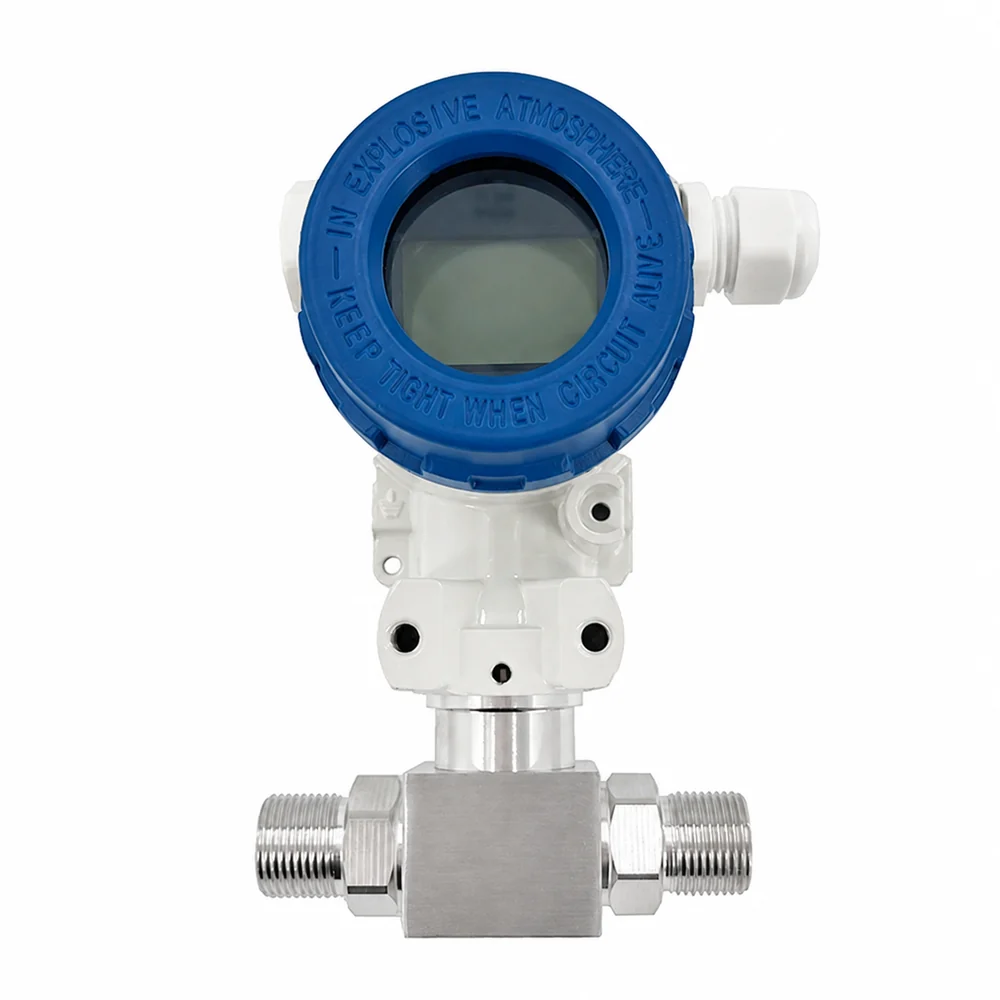

Differential Pressure
VI-PT-DPMeasures pressure drop across equipment. Includes HART protocol option.
05

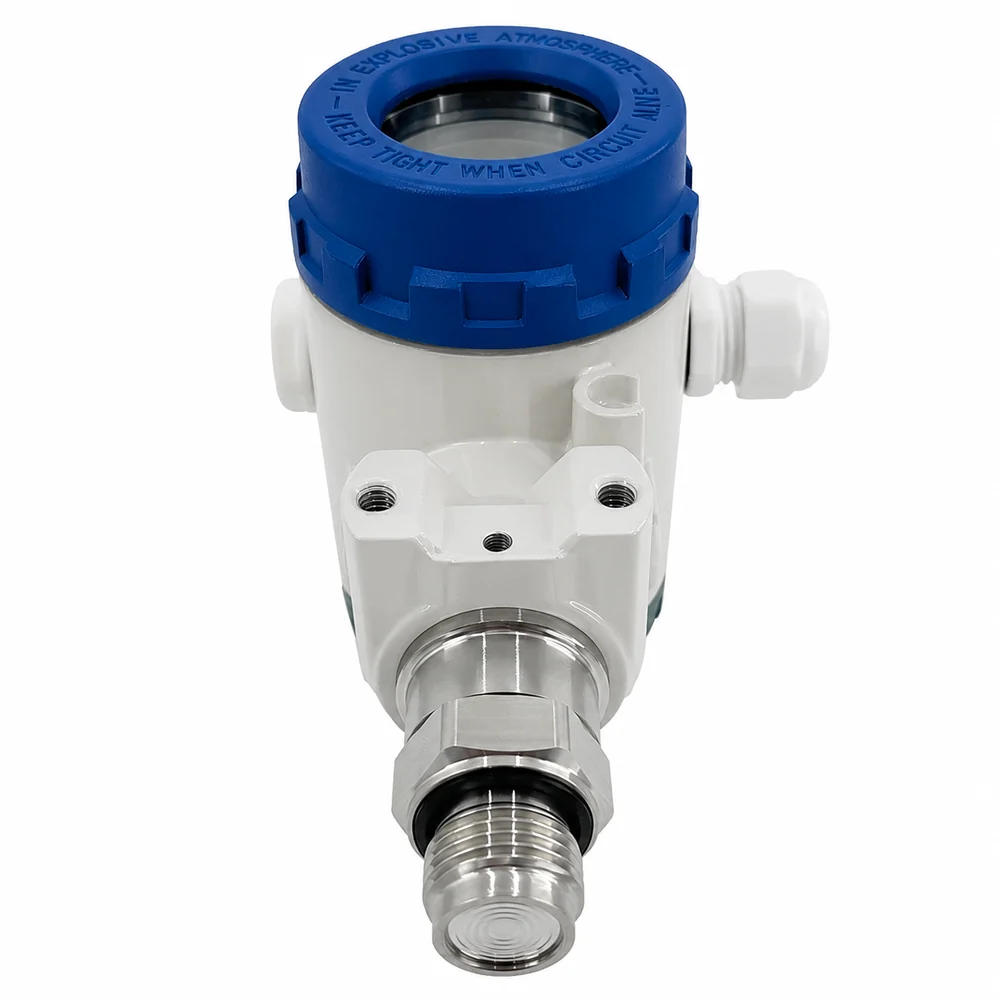

Flush Film
VI-PT-FFFlush diaphragm design prevents clogging with viscous or crystallizing media.
06

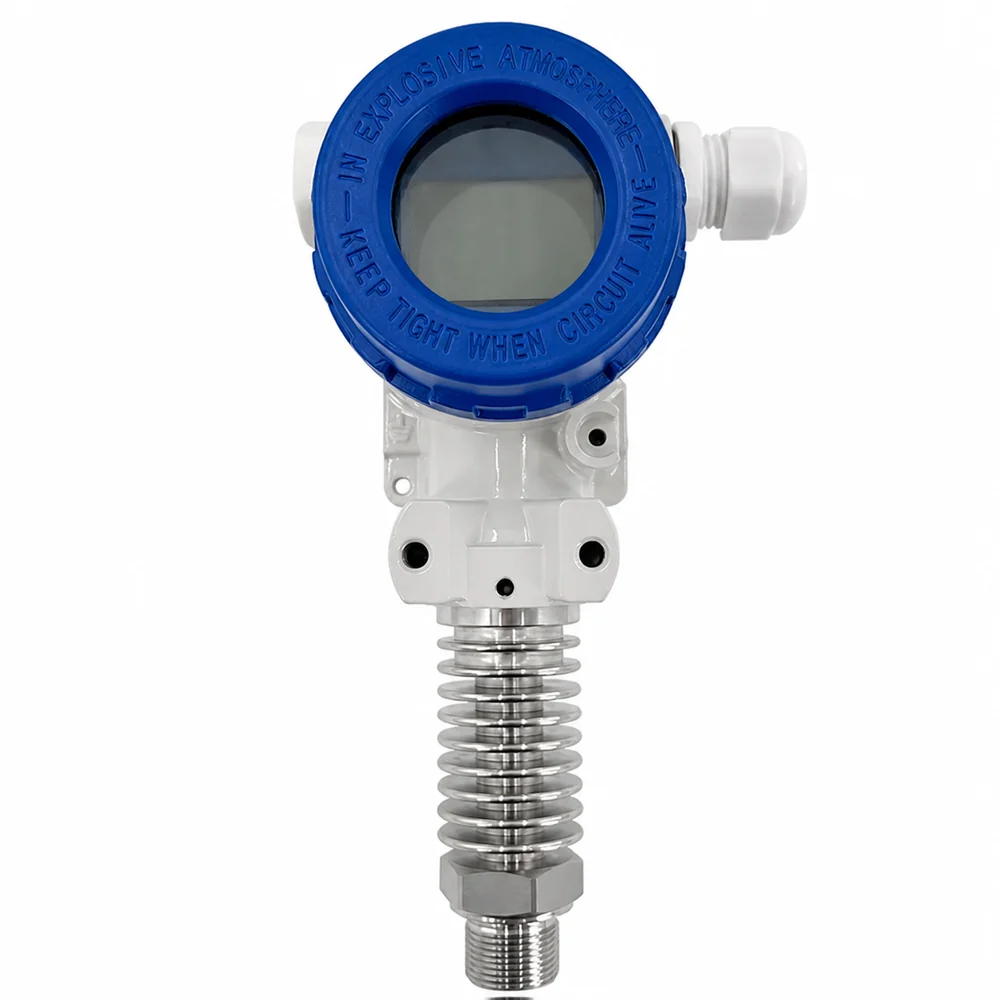

High Temperature
VI-PT-HTHeat-dissipating fins and special materials for elevated medium temperatures.
07
Flange Diaphragm
VI-PT-FL-DFlange-mounted, DN25 or DN50, with multiple diaphragm material options.
Start with the process
Send the pressure range, medium, temperature, connection and required output. We will confirm the sensor range and process configuration.
- Fluid, specific gravity and concentration
- Flow or level range, and line size
- Operating pressure and temperature
- Material of construction and end connection
- Output, display and area classification
